RAMBO project

RAMBO (Radar Astrofilo Meteorico Bolognese) is a meteoric radar we self-built and placed inside the headquarters of the AAB (Associazione Astrofili Bolognesi). The aim is to pick up the radio echoes of the meteors and record their characteristics. The tool has been active since 2013, collecting a large amount of data and have obteined interesting results.

The meteoric radar

Technically, a meteoric radar is an apparatus that exploits a physical property of the atmosphere: when a body (meteor, debris, etc.) enters the upper layers of the earth's atmosphere at very high speed, it impacts the first molecule of the atmosphere it encounters along the its walk.

The consequence of this impact is the disintegration of the corpuscle and the generation of free ions and electrons along the meteroid trajetory. A long and narrow cylinder is then created. This cylinder will persist for a short period of time before the process of recombining the ions with the electrons dissolves it.

For the duration of this short period if the free electrons are hit by an oscillating electromagnetic field (transmission) them are induced to oscillate with the same frequency and with the same polarization of the transmission signal. So they therefore behave, in turn, like a transmitter, or if you like, like a repeater.

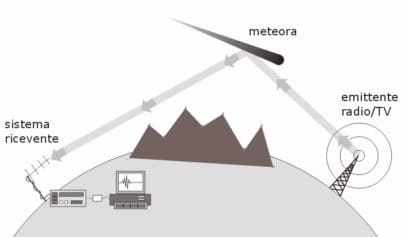

Consequently, from the radioelectric point of view this cylinder behaves like a reflecting object, similar to an airplane, a satellite or any other flying object. This phenomenon is called “meteor scatter” (see Figure).

If there is a radio transmitter that illuminates a certain portion of the sky and a receiver, tuned to the same frequency, we can hear rapid sounds corresponding to the instants in which the cylinder of free electrons oscillates on the same frequency of the transmitter.

Almost all amateurs around the world stop there, simply listening this sound, or recording the video screens generated by an audio signal plotting programs.

Instead, our idea, was to try to measure and analyze the physical characteristics (duration and amplitude) of the signal.

Technical features

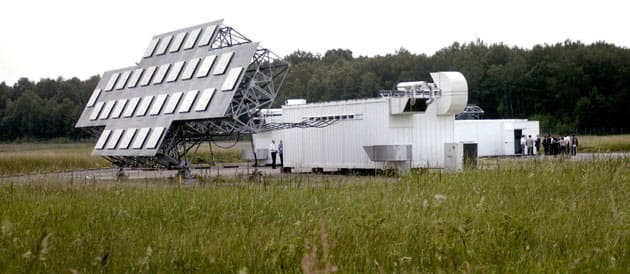

Obviously building or buying a radio transmitter of the necessary power is out of an amateur reach, and therefore it is necessary to use transmitters of others. RAMBO exploits the signal emitted by the military radar transmitter of Graves (France), (Figure 2) which transmits continuously in the VHF at very high power (the frequency is approximately 143 MHz).

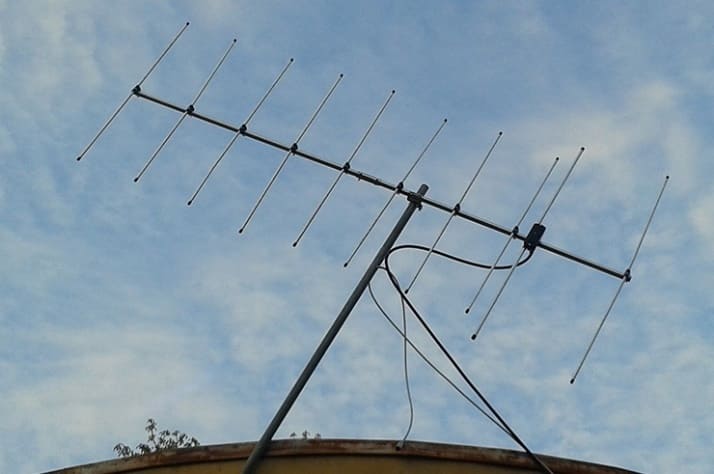

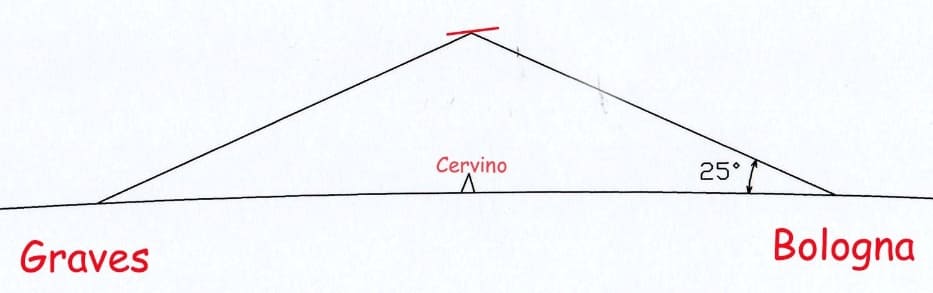

Its transmission is directed upwards and therefore, both for this reason and for the opposite shielding from the Alps, we can’t receive it from Bologna directly. Our receiver has a 10-element directive Yagi antenna (Figure 3) pointed in azimuth in the direction of the transmitter, and in declination at about 25 degrees, where we calculated to be the reflection point with the upper layers of the atmosphere (Figure 4 ).

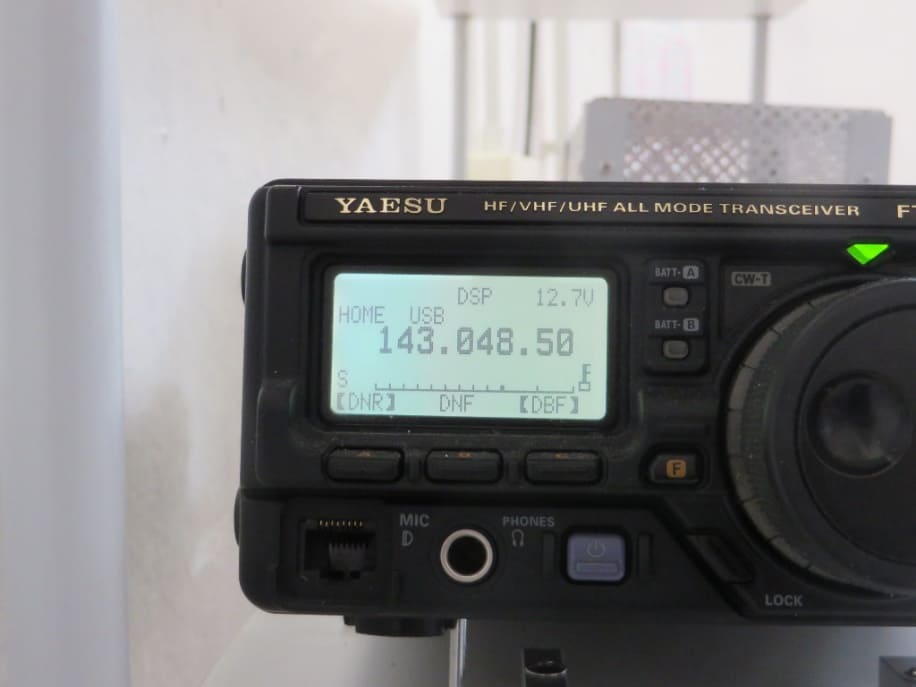

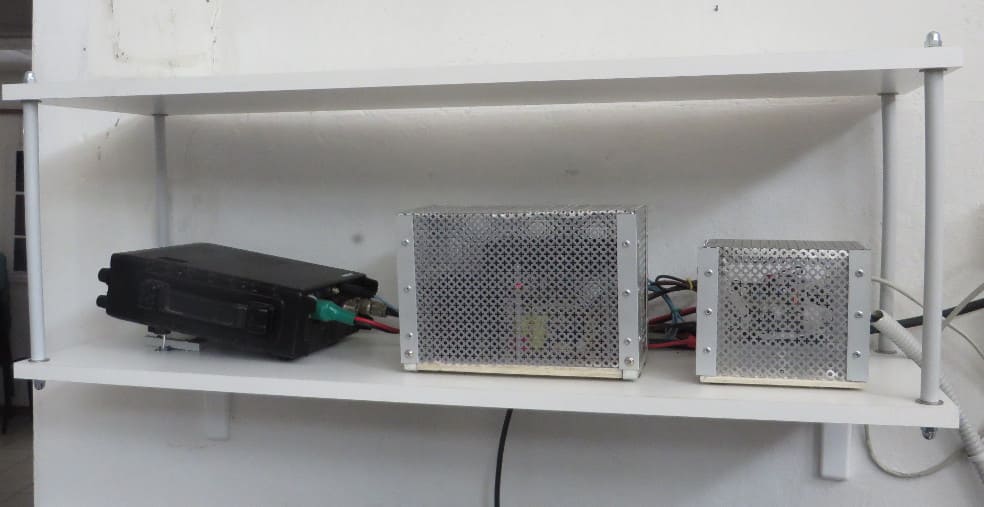

Our receiver is a Yaesu FT 857

The electronic project

For the analysis of the audio output coming from the radio receiver we chose the Arduino microprocessor. With it we first sample the signal using Arduino as an analog to digital converter and then perform the measurements.

Over the course of months and months of attempts, we have produced various versions with the aim of both getting the most out of the information available and eliminating the false positives (a lot of false positives) generated by the surrounding environment, both natural and anthropic.

With the sixth version of RAMBO we have finally arrived at a definitive project. Now Arduino no longer functions only as an amplitude meter (V meter), but simultaneously also acts as a frequency meter.

The combination of the two functions allows to perfectly discriminate between meteors and electrical transients..
With this version we now have a system that no longer suffers from "false positives". We have also improved the circuit that allows the measurement of signal amplitude, a measure that, together with the duration of the echo, provides us with information on the mass of the meteroid.

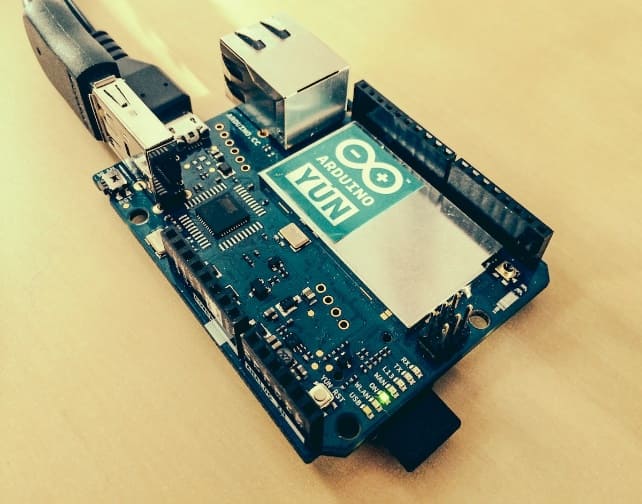

A further RAMBo 6 innovation is given by the transition to ArduinoYun, a device that also allows us to send daily the data as an e mail attachment.

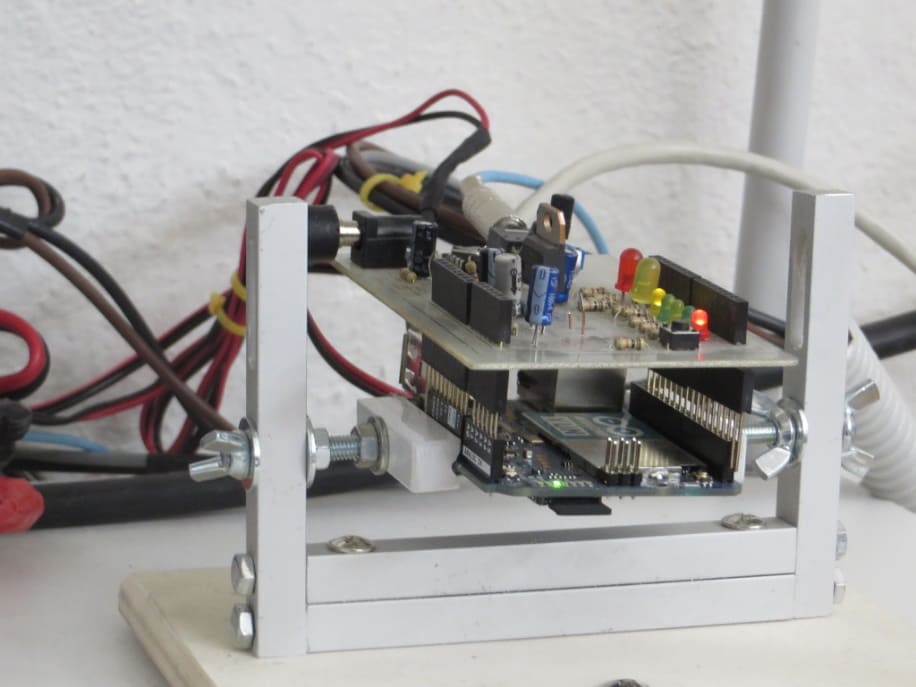

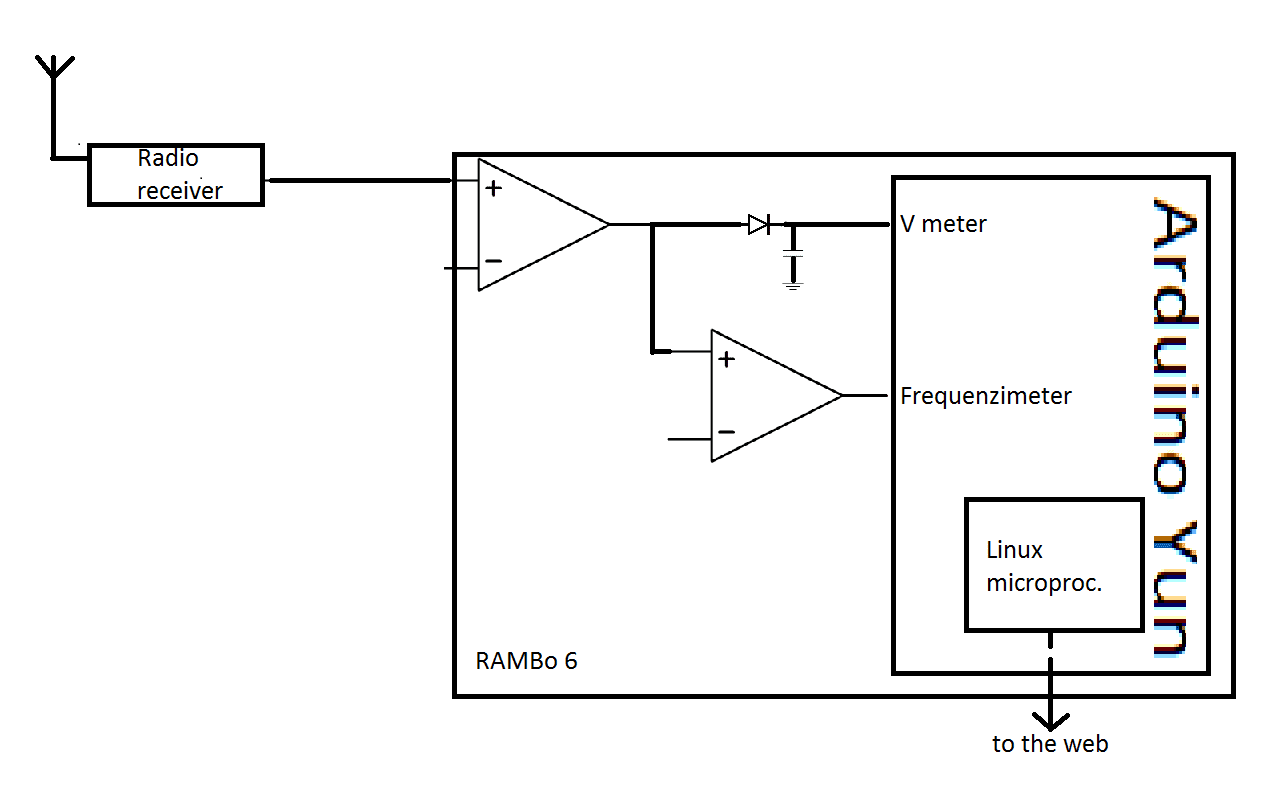

Before the analog to digital conversion made with the Arduino Yun, we have created a board in which we have been inserted two differential amplifiers, a potentiometer for adjusting the audio level and seven leds to monitor the Arduino live operation.

Curve GAD

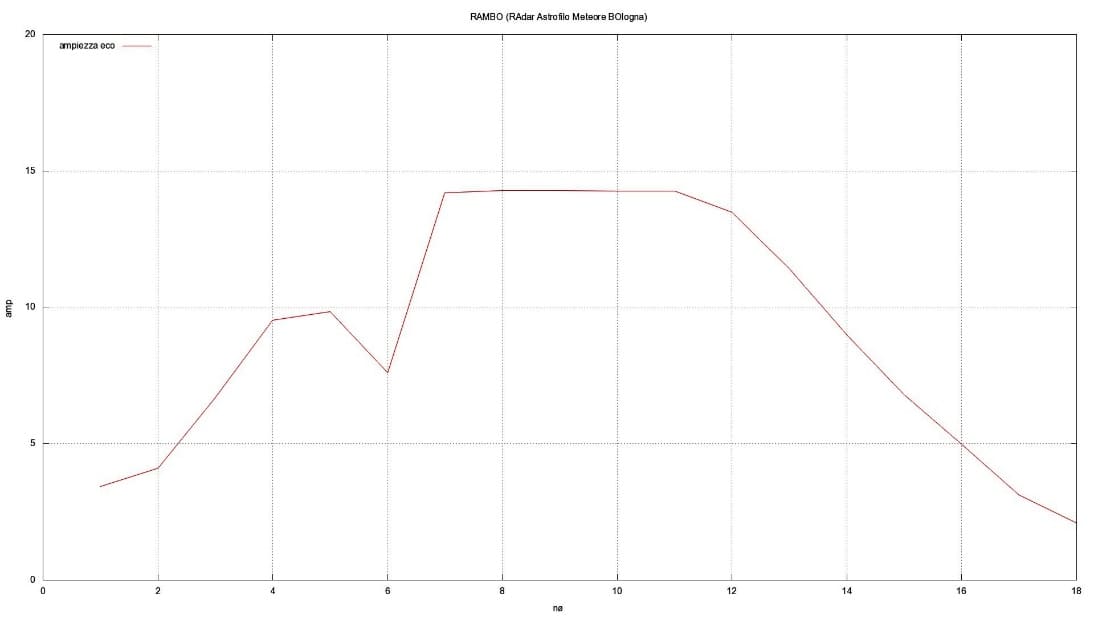

One of the recorded meteoric echoes is shown in Figure 5 in its representation as a function of time and audio signal amplitude

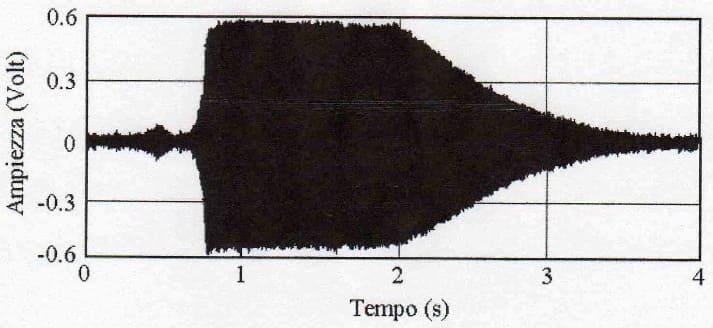

Note how this echo (hyperdense radio meteor) faithfully approximates the trend of similar hyperdense meteor recorded by the CNR of Vedrana di Budrio (Bologna).

Curve GAD

The audio signal produced by the receiving device, digitized and analyzed in frequency is then logged in a text file in which the following parameters are recorded:

  • Progressive event number
  • Event number per hour
  • Date and time (UT) (UT)
  • Echo length (milliseconds)
  • Audio signal max amplitude
  • Integral of the waveform

The results

The observations results is visible in the following three pages, in which we graph the meteoric echoes amplitude and duration and the hourly rate in different temporal resolutions: 5 minutes, one hour, one day.
